LtE in CMO #246,247,248,249

From   Edward Arnold GRAFTON


@. . . . . . Here is the latest Mars image from Houston, Texas.



http://www.egrafton.com/6-11-01.jpg



MARS IMAGE : June 11 2001  07:03  UT



             Ed Grafton, Houston Texas  ST6 CCD 14 inch f/11 Celestron SCT



             Eyepiece Projection @ f/60



              Integration Times:



                 6 BLUE  + IR rejection, .5 seconds, Edmunds filters

                 2 GREEN + IR rejection, .5 seconds, Edmunds filters

                 2 RED   + IR rejection, .5 seconds, Edmunds filters

                 17 Magenta, No IR       .1 seconds, Edmunds filters (luminance)



  Seeing good-excellent  8-9/10, transparency good-excellent 8/10, wind calm, very heavy dew.

Brightening noted on the edge of Syrtis Major on the Libya side. Also on the northern edge of Sinus Sabaeus. Perhaps some brightening around Deltoton Sinus.

(11 June 2001 email)

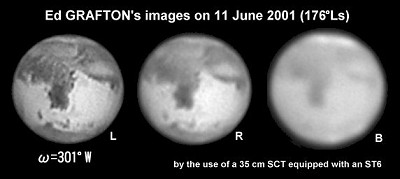

@. . . . . . . Hi Masatsugu, The attached images are from the 6/11 image (below) for the red, blue and luminance channels.



http://www.egrafton.com/6-11-01.jpg

(11 June 2001 email)

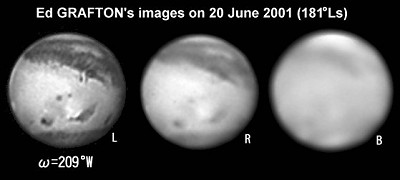

@. . . . . . The attached files are Luminance, Red, and Blue images from a 6/20/01 6:10 UT image made from Houston Texas with a C14 and ST6 CCD. The composite image is at



 http://www.egrafton.com/6-20-01.jpg



The weather in Houston has been unusual lately as we have had a "cold" front move through. Temperatures are still around 90 F, but the wind is from the north and the dew point has dropped from the low 70s to the mid 60s. This has not been good for seeing and I am hoping for more hot steamy H2O saturated air to move back in so the air becomes so thick that it cannot shimmer. The "cold" front moved in the week after we had 30 inches of rain in three days and had many people on their roofs. Now the mosquitoes are so thick that my 14 inch scope has little more than 10 inches of clear aperture!

                      (25 June 2001 email)

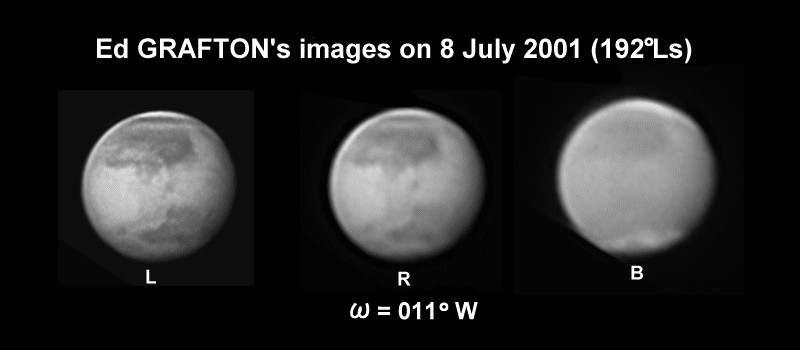

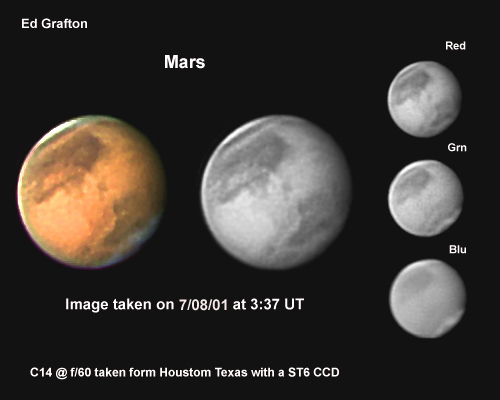

@. . . . . . The attached files are luminance, blue, and red images from a 07/08/01 3:37UT image taken from Houston Texas with a C14 and ST6 CCD. The composite image is at



 http://www.egrafton.com/m7_08_01.jpg



Integration Times:

6 BLUE  + IR rejection, .5 seconds, Edmunds filters

3 GREEN + IR rejection, .5 seconds, Edmunds filters

3 RED + IR rejection, .5 seconds, Edmunds filters

14 Magenta, No IR .1 seconds, Edmunds filters (luminance)

  Seeing very good 8/10, transparency excellent 9/10, wind South at 3 MPH, light dew. SPC brilliant. Albedo features weak or obliterated by Dust. Features from Solis Lacus to Ganges to Oxia Palus are obliterated.

(8 July 2001 email)

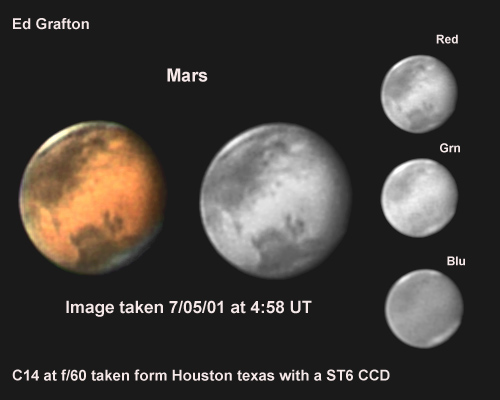

@........Hi Masatsugu; The attached files are luminance, blue, and red images from a 07/05/01 4:58 UT image taken from Houston Texas with a C14 and ST6 CCD. The composite image is at



http://www.egrafton.com/m7-05-01.jpg



 Eyepiece Projection @ f/60



 Integration Times:



     5 BLUE  + IR rejection, .5 seconds, Edmunds filters

     3 GREEN + IR rejection, .5 seconds, Edmunds filters

     3 RED+ IR rejection, .5 seconds, Edmunds filters

    11 Magenta, No IR  .1 seconds, Edmunds filters (luminance)



 Seeing fair to good 5/10, transparency fair, haze 5/10, wind calm MPH,light dew.

 Dust storm noted in Thaumasia. Bosporus and Nectaris S. still prominent in this 7/5/01 image were obscured by 7/08/01 as noted by:



http://www.egrafton.com/m7_08_01.jpg



Dust storm is encroaching on Mare Erythraeum.

 (8 July 2001 email)

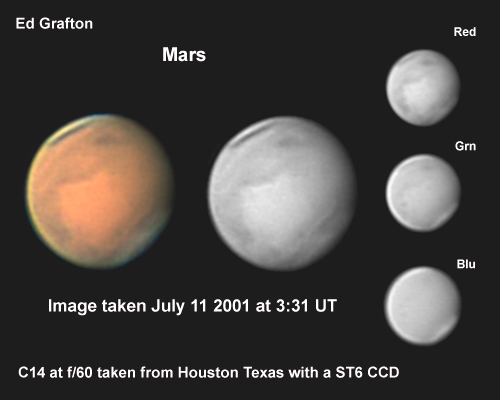

@........Hi Masatsugu,  The attached files are composite, luminance, blue, and red images from a July 11 2001 3:31 UT image taken from Houston Texas with a C14 and ST6 CCD. Hyper link image at



 http://www.egrafton.com/07-11-01.jpg



   Eyepiece Projection @ f/60



      Integration Times:



       5 BLUE  + IR rejection, .5 seconds, Edmunds filters

       5 GREEN + IR rejection, .5 seconds, Edmunds filters

       5 RED     + IR rejection, .5 seconds, Edmunds filters

      20 Magenta, No IR .1 seconds, Edmunds filters (luminance)



 Seeing very good 7/10, transparency excellent 9/10, wind South at 3 MPH light dew.

 All Albedo features very weak except for collar of SPC.

(11 July 2001 email)

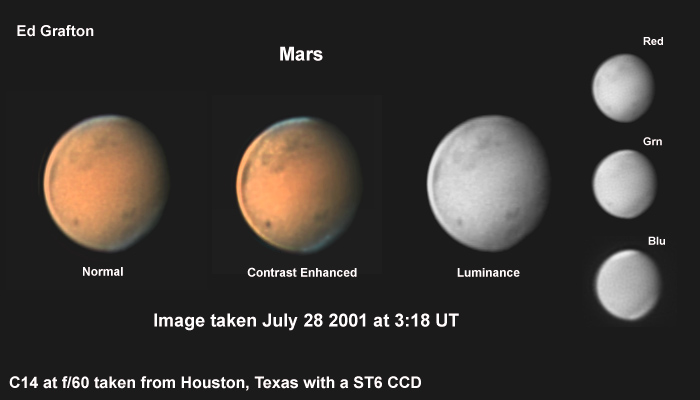

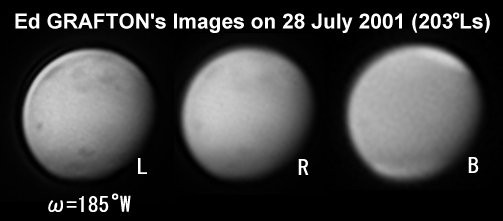

@ . . . . . . . Hi Masatsugu, The attached files are luminance, blue, and red images from a 07/28/01 3:18 UT image taken from Houston Texas with a C14 and ST6 CCD. The composite image is at



 http://www.egrafton.com/m7-28-01.jpg



Seeing fair-good 5/10, transparency good-excellent 8/10, wind South at 2 MPH, moderate dew.

(28 July  2001 14:56:39 -0500 (CDT)

@ . . . . . . . Hi Masatsugu,  Looks like the dust storm is still going strong. Maurizio Di Sciullo in Florida USA captured this also in his image taken about 30 minutes earlier.

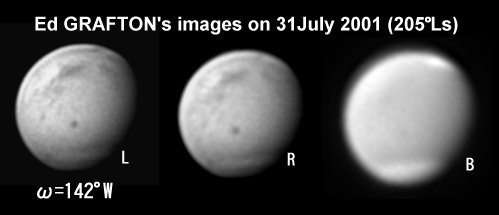

 The attached files are luminance, blue, and red images from a 07/31/01 2:17 UT image taken from Houston Texas with a C14 and ST6 CCD. The composite image is at:



http://www.egrafton.com/m7-31-01.jpg



Seeing good 7/10, transparency excellent 9/10, wind South at 25 MPH, no dew.

Heavy dust activity noted from Solis Lacus to Chryse Xanthe.

(1 August 2001 01:11:59 -0500 (CDT) email)


 Ed GRAFTON (Hpuston, Texas, USA)
