LtE in CMO #281

From Donald C PARKER



. . . . . . . Date: Fri, 10 Oct 2003 04:43:11 +0000

Subject: Mars Images



Hi All,

I have attached some more Mars images from 9 October.

Best,

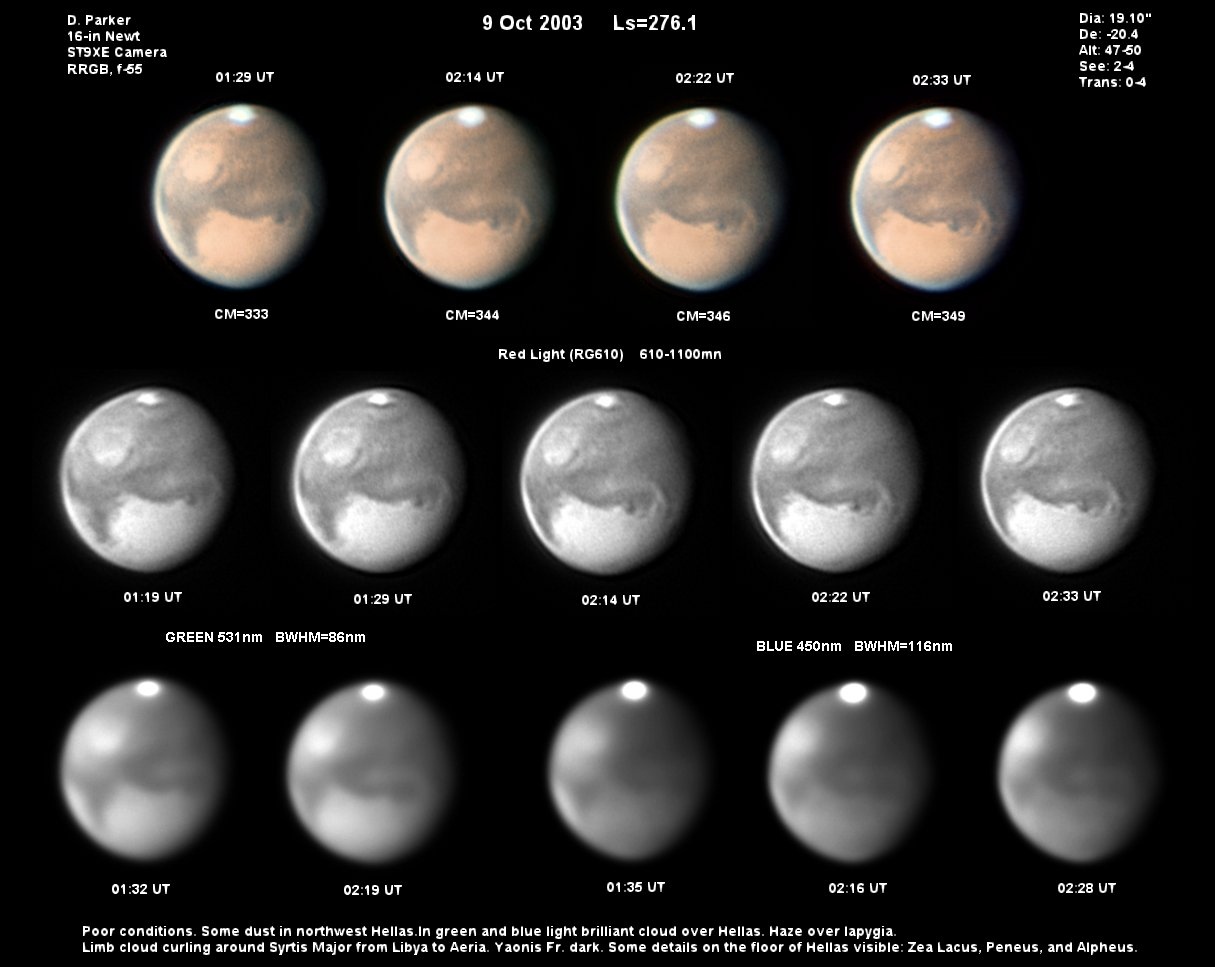

MARS IMAGES 9 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/55.4

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.13-0.15s 2-3 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.45s 4-5 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 1.55-1.75s 6 images

Images bias,flat and dark corrected.



Poor conditions:

Seeing POOR (2-4 Pickering). Transparency variable (0- 4.0m): fast cumulus clouds, high cirrus.

Gusty Wind NNE 5-13 kts. Altitude = 47-50 degrees. No dew.



Some dust in northwest Hellas.In green and blue light brilliant cloud over Hellas.

Haze over Iapygia. Limb cloud curling around Syrtis Major from Libya to Aeria. Yaonis Fr. dark.

Some details on the floor of Hellas visible: Zea Lacus, Peneus, and Alpheus.



. . . . . . .Date: Fri, 10 Oct 2003 06:46:48 +0000

Subject: Mars Image



Hi All,

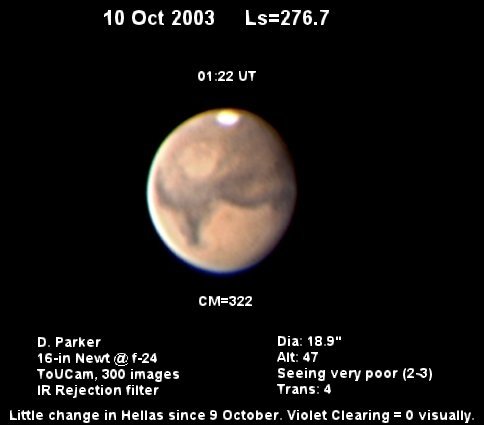

I have attached a rather poor Mars image from 10 October. No significant changes since 9 October.

Best,



. . . . . . .Date: Tue, 14 Oct 2003 18:50:19 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 13 October.

Best,

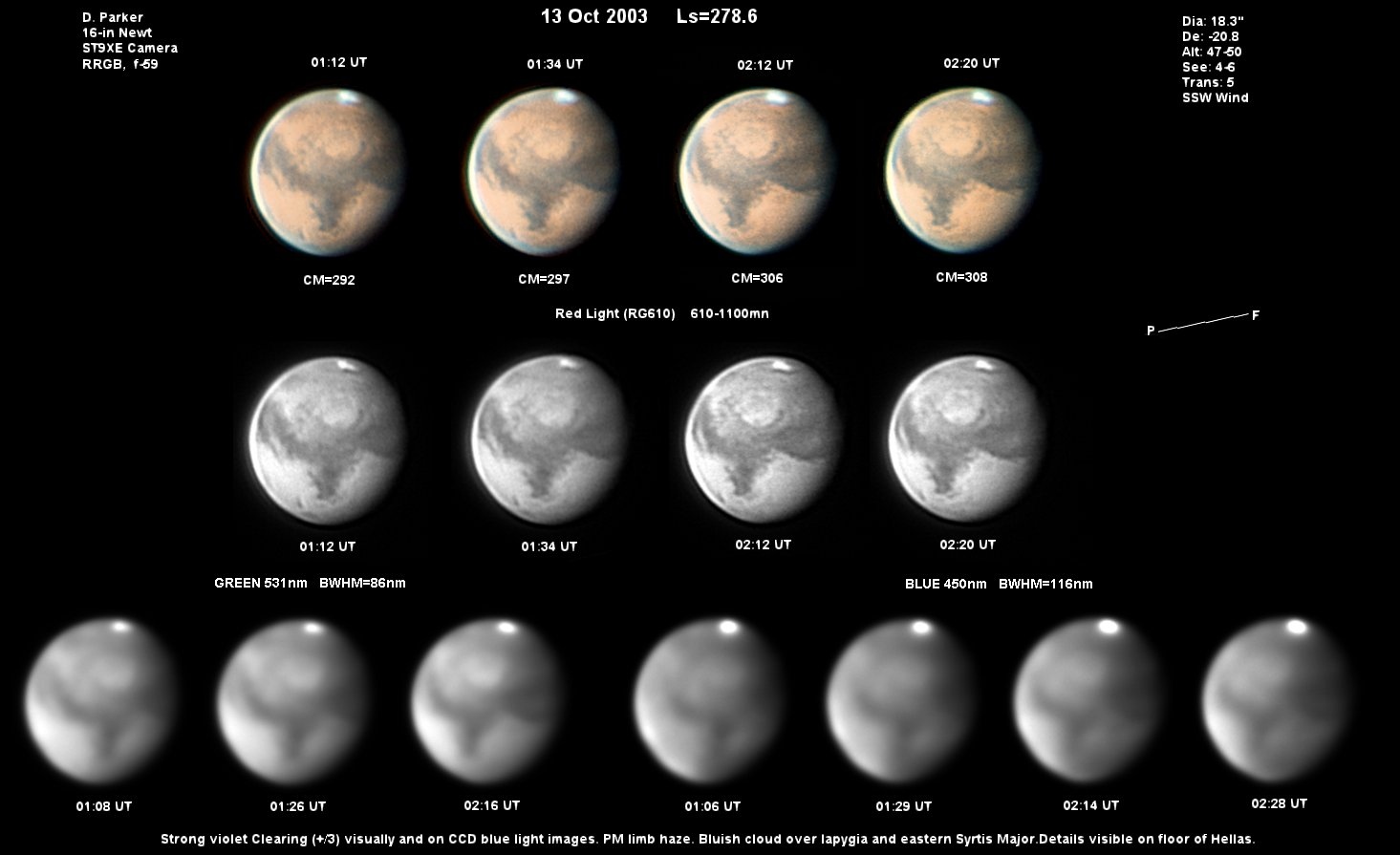

MARS IMAGES 13 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/59

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.15-0.16s 1-4 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.55s 5-6 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 1.95s 4-7 images

Images bias,flat and dark corrected.



Seeing fair (4-6 Pickering). Transparency (4.5-5.0m).

Gusty Wind SSW 4-13 kts. Altitude = 47-50 degrees. No dew.



Strong violet Clearing (+/3) visually and on CCD blue light images.

PM limb haze. Bluish cloud over Iapygia and eastern Syrtis Major.

Details visible on floor of Hellas.



. . . . . . .Date: Wed, 15 Oct 2003 21:48:15 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 14 October.

Best,

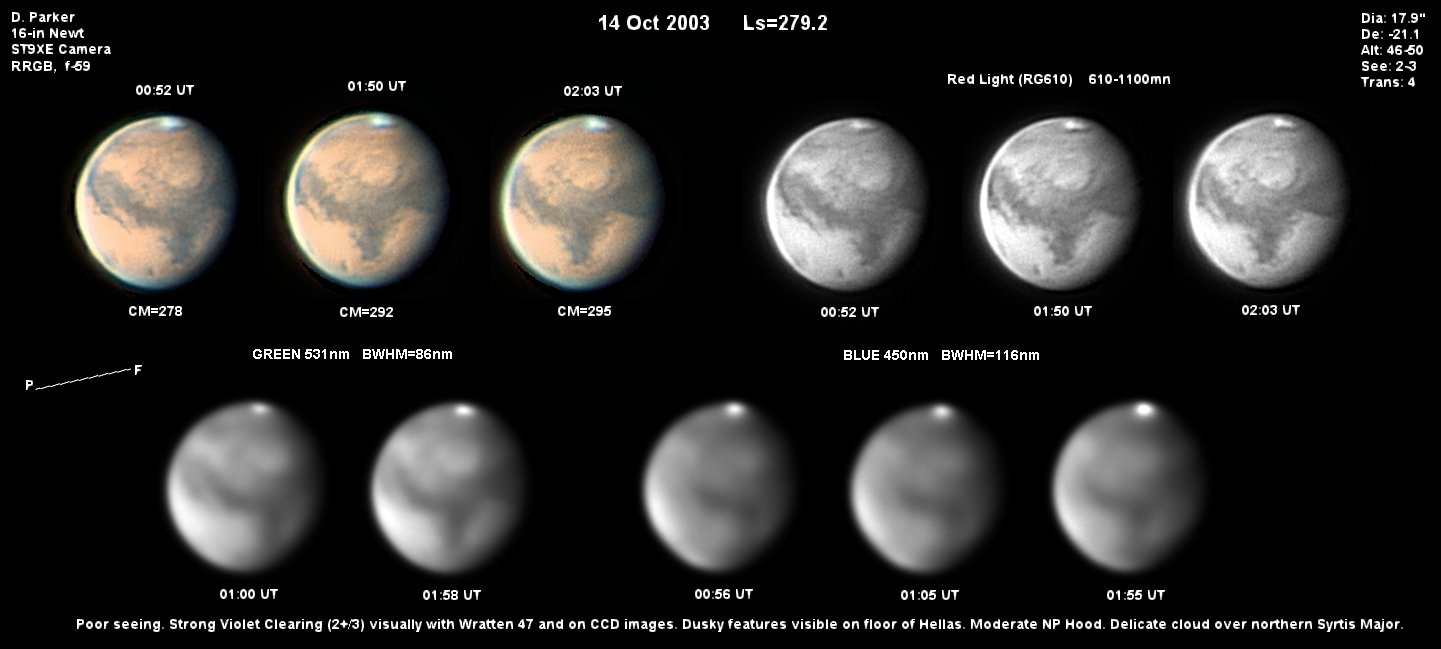

MARS IMAGES 14 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/59

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.17-0.18s 1-3 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.60s 5-8 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 2.40s 5-8 images

Images bias,flat and dark corrected.



Seeing poor (2-3 Pickering). Transparency (4.0m), fast cumulus clouds.

Wind SSW 2-6 kts. Altitude = 46-50 degrees. No dew.



Poor seeing. Strong Violet Clearing (2+/3) visually with Wratten 47 and on CCD images.

Dusky features visible on floor of Hellas. Moderate NP Hood.

Delicate cloud over northern Syrtis Major.



. . . . . . .Date: Thu, 16 Oct 2003 17:51:22 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 16 October. The Ls is 280 degrees -- Jan 1 on Mars. Happy New Year!

Best,

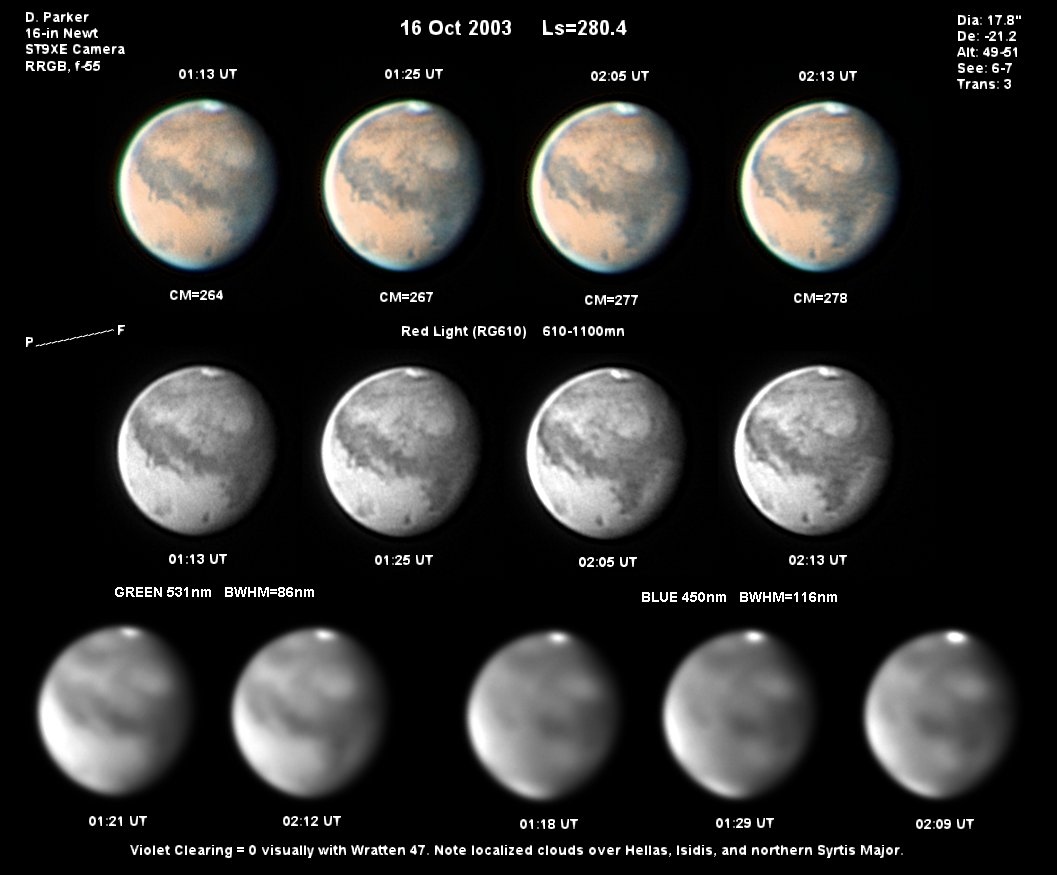

MARS IMAGES 16 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/55.4

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.17-0.18s 1-4 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.70s 5-6 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 2.90s 6 images

Images bias,flat and dark corrected.



Poor conditions:

Seeing fair (6-7 Pickering). Transparency poor (3-3.5m): haze.

Wind N 1-10 kts. Altitude = 49-51 degrees. No dew.



Violet Clearing = 0 visually with Wratten 47.

Note localized clouds over Hellas, Isidis, and northern Syrtis Major.



. . . . . . .Date: Thu, 16 Oct 2003 18:52:55 +0000

Subject: RE:Mars Images



Dear Masatsugu,

Many thanks for finding and telling me about the errors in my images. I have corrected them. For the De, I will start using a program that Jeff recommended called MAPOS. It is more accurate, according to Jeff, although a bit cumbersome to use. Sorry for the mistakes, but I appreciate your diligence in checking the data.

Hope all is well with you. I am getting tired of Mars!

Best,



. . . . . . .Date: Thu, 16 Oct 2003 18:55:40 +0000

Subject: Errors in Oct 14 images



Hi All,

Masatsugu Minami has pointed out errors in the Ls and Cms on my 14 October images. I have corrected these and enclosed the revised edition. Sorry for the mistakes. The Curse of the Red Planet continues!

Best,



. . . . . . .Date: Tue, 21 Oct 2003 04:28:42 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 19 October. Localized clouds over Ausonia and Libya-Isidis.

Best,

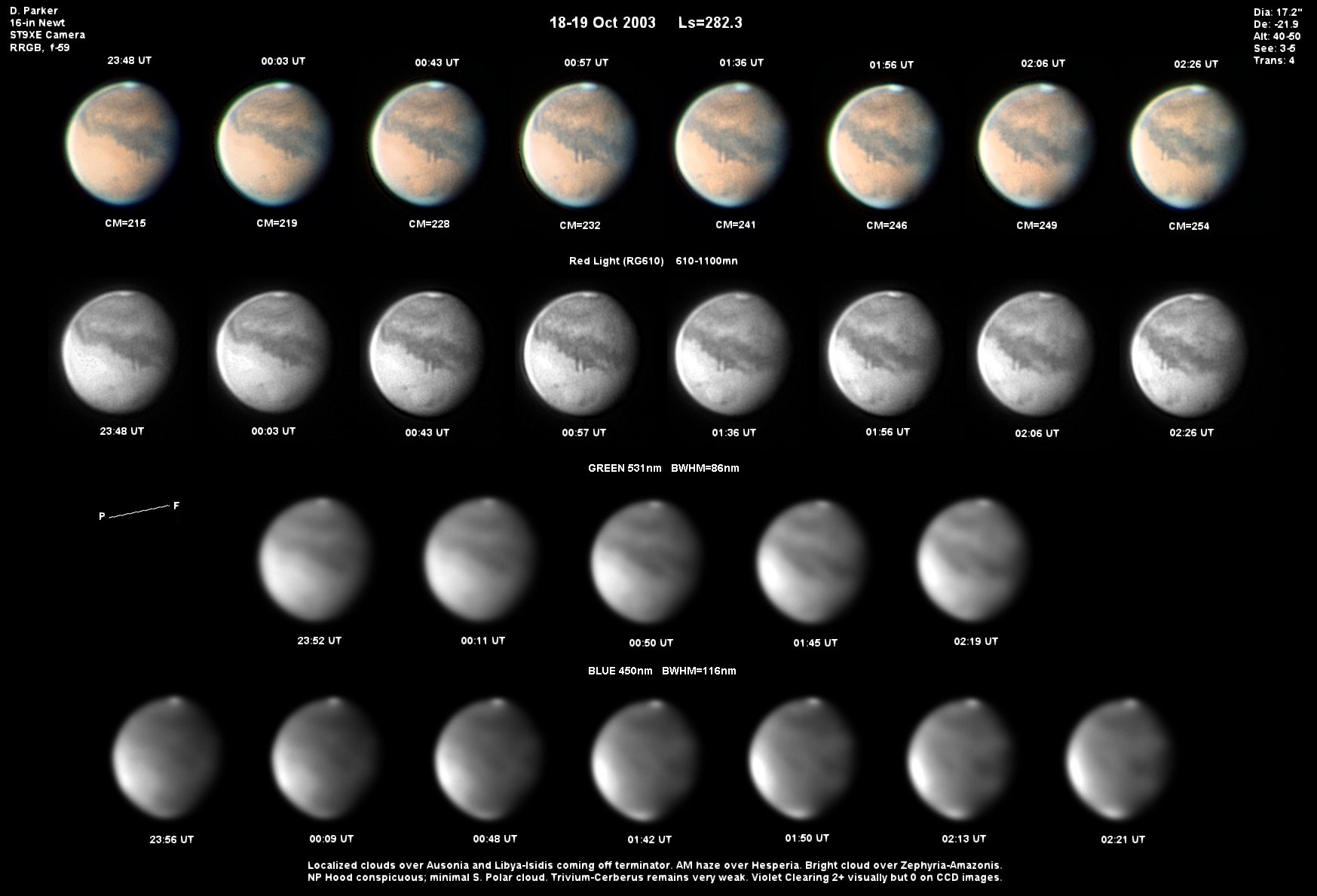

MARS IMAGES 18-19 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/59

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.13-0.14s 2-3 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.55s 3-6 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 1.95s 4-8 images

Images bias,flat and dark corrected.



Seeing poor (3-5 Pickering). Transparency = 4.0m, haze.

Gusty Wind NNE 1-14 kts. Altitude = 40-50 degrees. Light dew.



Localized clouds over Ausonia and Libya-Isidis coming off terminator. AM haze over Hesperia.

Bright cloud over Zephyria-Amazonis. NP Hood conspicuous; minimal S. Polar cloud.

Trivium-Cerberus remains very weak. Violet Clearing 2+ visually but 0 on CCD images.



. . . . . . .Date: Wed, 22 Oct 2003 04:44:17 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 21 October.

Best,

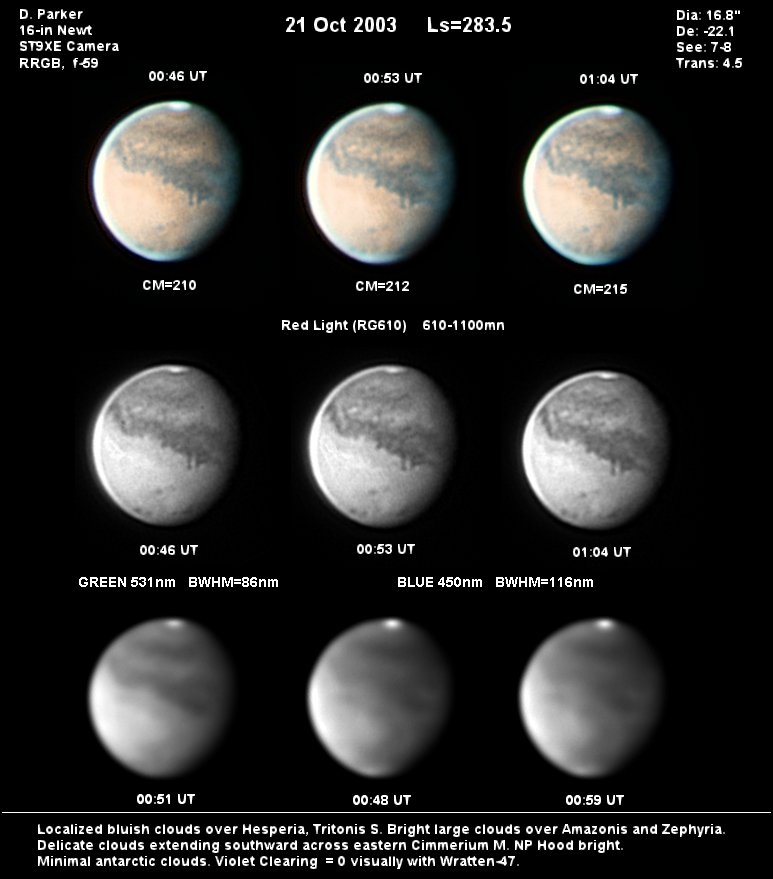

MARS IMAGES 21 October, 2003



D.C. Parker, Coral Gables, FL. 16-in (41cm) Newtonian

ST9XE CCD Camera Eyepiece Projection @ f/59

Integration Times: RRGB Images

RED (RG610 Red Filter, 610-1100nm: NO IR Rejection) 0.14-0.15s 2 images

GREEN (CFW8C, 531nm central; BWHM 86nm) 0.60s 7 images

BLUE (CFW8C, 450nm central, BWHM 116nm) 2.50s 7-9 images

Images bias,flat and dark corrected.



Seeing good (7-8 Pickering). Transparency = 4.5m.

Wind ENE 2-10 kts. Altitude = 48-50 degrees. No dew.



Localized bluish clouds over Hesperia, Tritonis S. Bright large clouds over Amazonis and Zephyria.

Delicate clouds extending southward across eastern Cimmerium M. NP Hood bright.

Minimal antarctic clouds. Violet clearing - = 0 visually with W-47.





. . . . . . .Date: Fri, 24 Oct 2003 05:21:52 +0000

Subject: Mars Images



Hi All,

I have attached some Mars images from 23 October.

Best,



Don PARKER's Images on 23 October 2003 at 00:32~ 01:24 GMT

  λ=285Ls,   (ω=188W, 197W,   φ=23S),   δ=16.5",   ι=36

Seeing poor, "slow" (3-4 Pickering). Transparency = 4.5m.
Wind W 0-7 kts. Altitude = 48-51. No dew.

Note:
Brilliant small cloud on PM limb near Arsia Mons. Bright localized cloud in northern Zephyria-Amazonis SE of the still weak Trivium-Cerberus. Violet Clearing = 0.

PARKER uses a 41 cm Newtonian working at f /59 with an eyepiece projection together with an SBIG ST9XE ccd camera, equipped with a CFW-8C filter wheel and RGB interference filters

Integration times:
  Red      (610 -1100nm) :   0.14s   2 images   (RG610, NO IR ejection)
  Green   (488 - 574nm) :    0.60s   4-5 images
  Blue      (392 - 508nm) :   2.50s   3-6 images
Images bias, flat and dark corrected.




Don PARKER (Miami, FL, USA)

park3232@bellsouth.net
